Precision PCB Assembly Services for Demanding Applications
Precision PCB Assembly Services

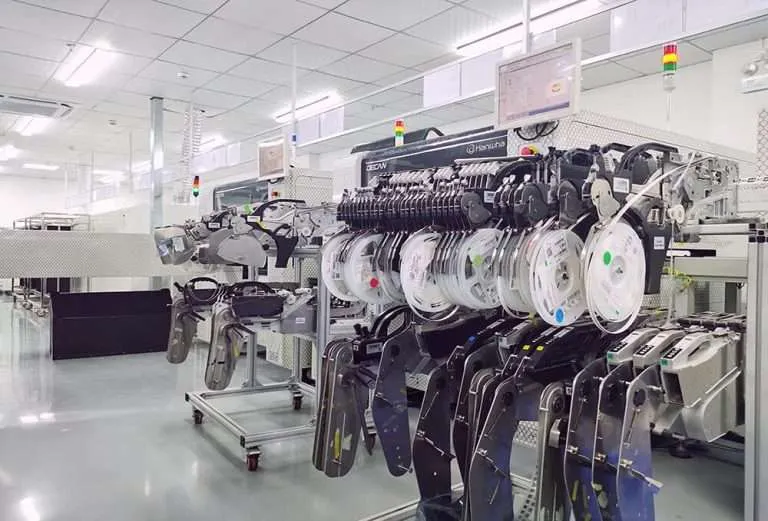

At UMO Tech, we deliver high-performance PCB assembly with precision, speed, and scalability. Explore our comprehensive PCB assembly capabilities including cutting-edge SMT lines, IPC Class 3 workmanship standards, and rigorous testing (AOI, X-ray, functional validation) to serve industries ranging from consumer electronics to aerospace. We handle 01005 components to large BGAs, mixed-technology assemblies (SMT/THT/flex), and specialized processes like press-fit, conformal coating, and ultrasonic cleaning.
PCB Assembly Capabilities & Specifications
| Category | Specifications | Advanced Options |
|---|---|---|
| Assembly Types | SMT, THT, Mixed-Technology, Flex/Rigid-Flex | |
| Component Range | 01005 (0.4mm) to 50mm² BGAs | 0.3mm microBGAs, Coin Cells |
| Placement Speed | 50,000 CPH (Chips Per Hour) | |
| Solder Tech | Lead-Free (SAC305), No-Clean Flux | |
| Accuracy | ±25μm (Chip), ±40μm (QFN/BGA) | ±15μm (High-Precision Lines) |
| Inspection | AOI (2D/3D), SPI, X-Ray (2D/3D) | CT Scanning, Cross-Section Analysis |
| Testing | ICT, Flying Probe, Functional Test (FCT) | Boundary Scan, RF Testing |
| Max Board Size | 510mm × 460mm (Standard), 600mm × 600mm (Custom) | Panelized Assembly |
| Certifications | ISO 9001, IATF 16949 (Auto), IPC-A-610 Class 2/3 | |
| Board Washing | Aqueous Cleaning (RO/DI Water), Semi-Aqueous | Solvent-Free, Ultrasonic Cleaning for Sensitive Components |
